Dx系列教程2

1
2
3
4

//字体配置
ImFontConfig f_cfg;
f_cfg.FontDataOwnedByAtlas = false;
const ImFont* font = io.Fonts->AddFontFromMemoryTTF((void*)baidu_font_data, baidu_font_size, 18.0f,&f_cfg, io.Fonts->GetGlyphRangesChineseSimplifiedCommon());

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

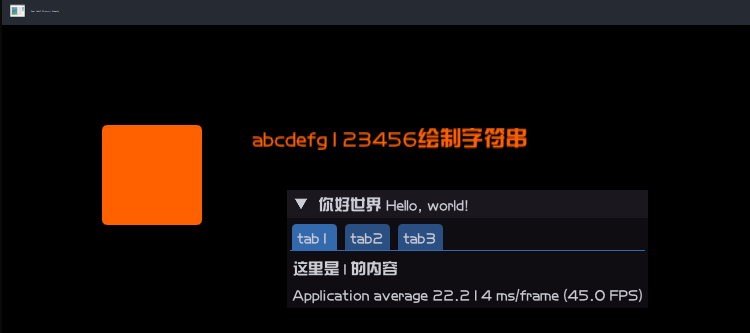

ImGui::Begin(u8"你好世界 Hello, world!");
ImGuiTabBarFlags tab_bar_flags = ImGuiTabBarFlags_None;
if (ImGui::BeginTabBar(u8"mytab", tab_bar_flags))
{
  if (ImGui::BeginTabItem("tab1"))
  {
    ImGui::Text(u8"这里是1的内容");
    ImGui::EndTabItem();
  }
  if (ImGui::BeginTabItem("tab2"))
  {
    ImGui::Text(u8"这里是2的内容");
    ImGui::EndTabItem();
  }
  if (ImGui::BeginTabItem("tab3"))
  {
    ImGui::Text(u8"这里是3的内容");
    ImGui::EndTabItem();
  }
  ImGui::EndTabBar();
}

ImGui::Text("Application average %.3f ms/frame (%.1f FPS)", 1000.0f / ImGui::GetIO().Framerate, ImGui::GetIO().Framerate);
ImGui::End();


std::string str = u8"abcdefg123456绘制字符串";

auto drawList = ImGui::GetOverlayDrawList();
drawList->AddRectFilled({ 100.f,100.f }, {200.f,200.f}, ImColor(255,96, 0, 255), 5.f);
drawList->AddText(font, 25.f, { 250.f,100.f }, ImColor(255, 96, 0, 255), str.c_str());

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92

class DxTimeControl
{
public:
  //初始化函数
  DxTimeControl()
  {
    s_tStart = s_tFixed = s_tLast = s_tNow = std::chrono::steady_clock::now();
    s_tExceptedInvertal = std::chrono::milliseconds(15);
  }
  //初始化函数
  DxTimeControl(int ms)
  {
    ms = (ms < 0 || ms > 20) ? 15 : ms;
    s_tStart = s_tFixed = s_tLast = s_tNow = std::chrono::steady_clock::now();
    s_tExceptedInvertal = std::chrono::milliseconds(ms);
  }
  //析构函数
  ~DxTimeControl()
  {
  }
  // 获取上一帧与当前帧的时间间隔（秒）
  float getDeltaTime()
  {
    return std::chrono::duration_cast<std::chrono::microseconds>(s_tNow - s_tLast).count() / 1000.f / 1000.f;	}
  // 获取上一帧与当前帧的时间间隔（毫秒）
  unsigned int getDeltaTimeMilliseconds()
  {
    return static_cast<unsigned int>(std::chrono::duration_cast<std::chrono::milliseconds>(s_tNow - s_tLast).count());
  }
  // 获取游戏总时长（秒）
  float getTotalTime()
  {
    return std::chrono::duration_cast<std::chrono::microseconds>(s_tNow - s_tStart).count() / 1000.f / 1000.f;
  }
  // 获取游戏总时长（毫秒）
  unsigned int getTotalTimeMilliseconds()
  {
    return static_cast<unsigned int>(std::chrono::duration_cast<std::chrono::milliseconds>(s_tNow - s_tStart).count());
  }
  // 循环周期
  void cycleTime(int ms)
  {
    s_tExceptedInvertal = std::chrono::milliseconds(ms);
  };
  // 是否达到更新时间
  bool isReady()
  {
    return s_tExceptedInvertal < std::chrono::duration_cast<std::chrono::milliseconds>(s_tNow - s_tFixed);
  }
  // 更新当前时间
  void updateNow()
  {
    // 刷新时间
    s_tNow = std::chrono::steady_clock::now();
  }
  // 更新时间信息
  void updateLast()
  {
    s_tFixed += s_tExceptedInvertal;

		s_tLast = s_tNow;
    s_tNow = std::chrono::steady_clock::now();
  }
  // 重置时间信息
  void reset()
  {
    s_tLast = s_tFixed = s_tNow = std::chrono::steady_clock::now();
  }
  // 挂起线程
  void sleep()
  {
    // 计算挂起时长
    int nWaitMS = s_tExceptedInvertal.count() - static_cast<int>(std::chrono::duration_cast<std::chrono::milliseconds>(s_tNow - s_tFixed).count());

		if (nWaitMS > 1)
    {
      // 挂起线程，释放 CPU 占用
      std::this_thread::sleep_for(std::chrono::milliseconds(nWaitMS));
    }
  }
private:
  // 游戏开始时间
  std::chrono::steady_clock::time_point s_tStart;
  // 当前时间
  std::chrono::steady_clock::time_point s_tNow;
  // 上一帧刷新时间
  std::chrono::steady_clock::time_point s_tLast;
  // 固定的刷新时间
  std::chrono::steady_clock::time_point s_tFixed;
  // 每一帧间隔
  std::chrono::milliseconds s_tExceptedInvertal;
};
