和利时CFC

辛琪  收录于  类别 仪表
     约 92 字   预计阅读 1 分钟    次阅读

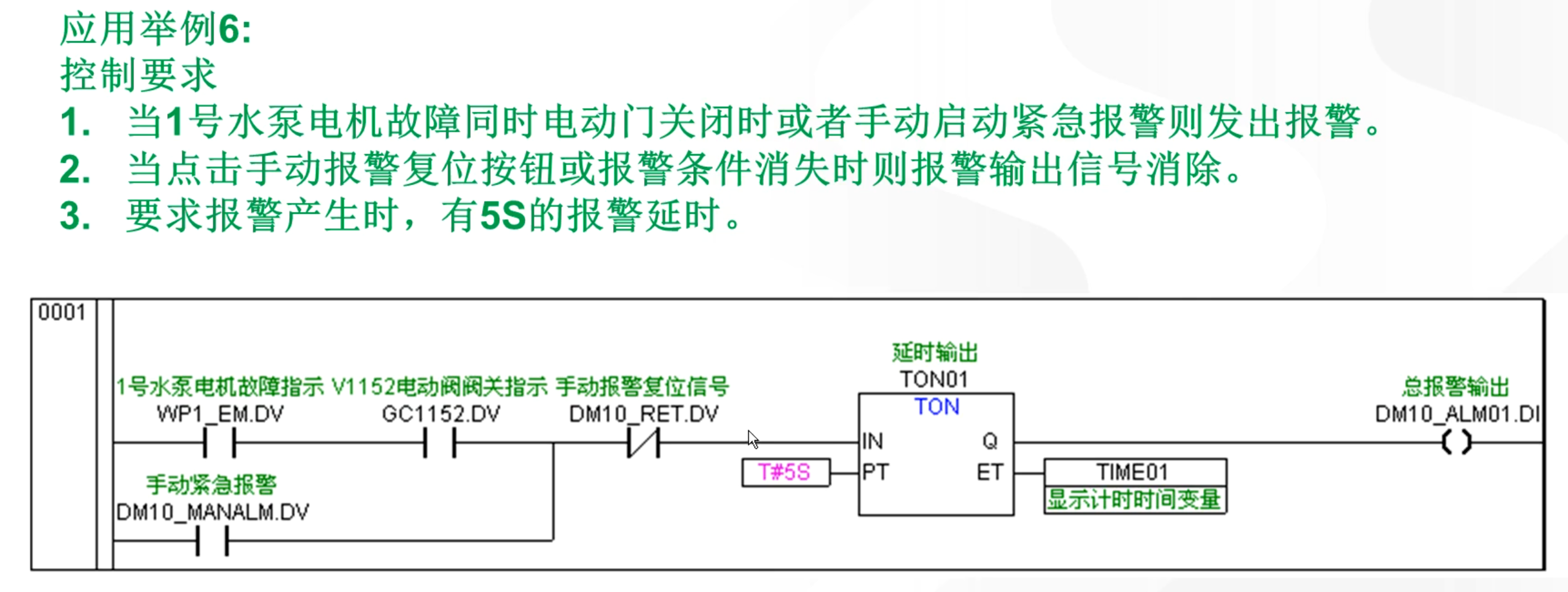

LD语言

LD语言是一种T型图语言，常用于开关量的控制逻辑组态。

https://cdn.jsdelivr.net/gh/xinqinew/pic@main/img/image-20220820211105578.png

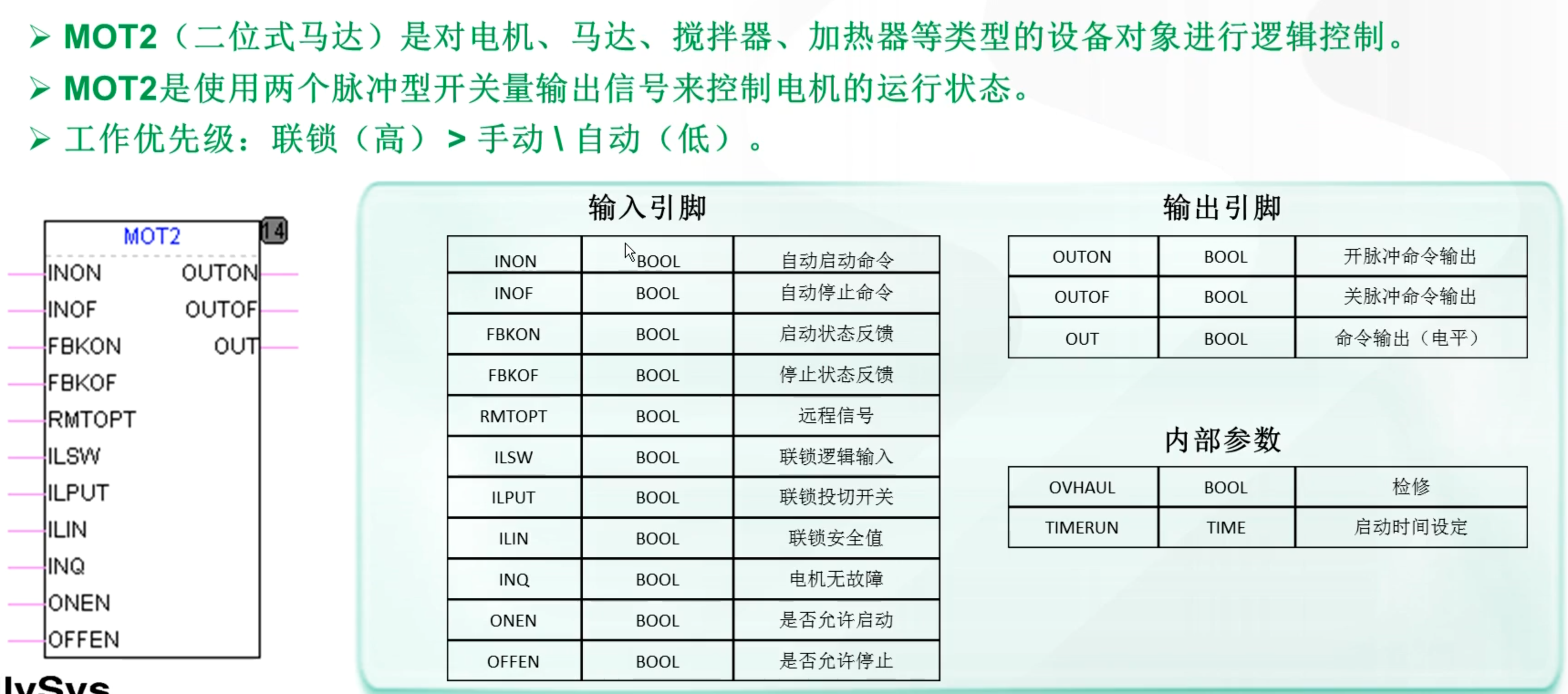

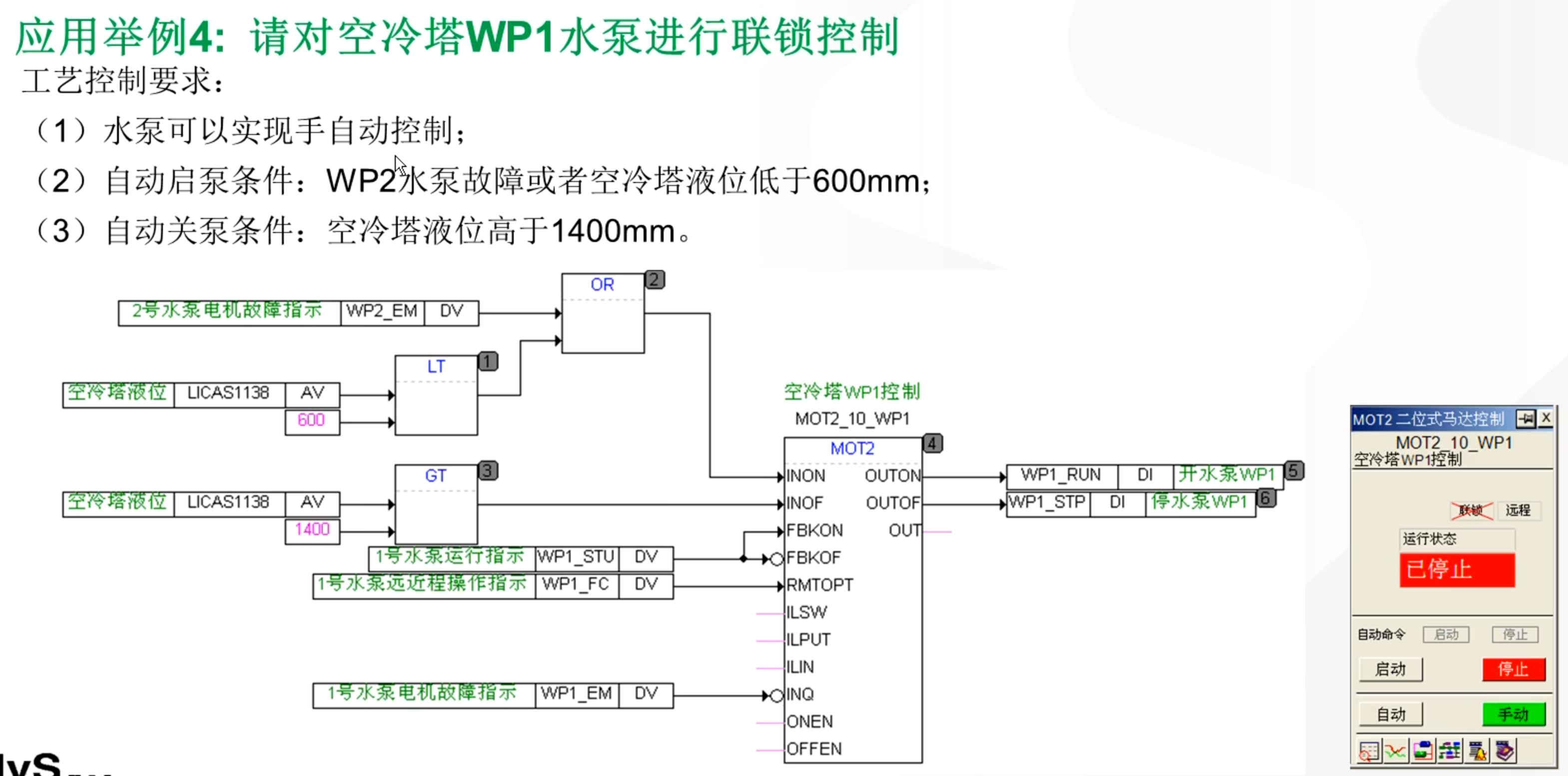

MOT2功能块

https://cdn.jsdelivr.net/gh/xinqinew/pic@main/img/image-20220826200025767.png

https://cdn.jsdelivr.net/gh/xinqinew/pic@main/img/image-20220826211350810.png

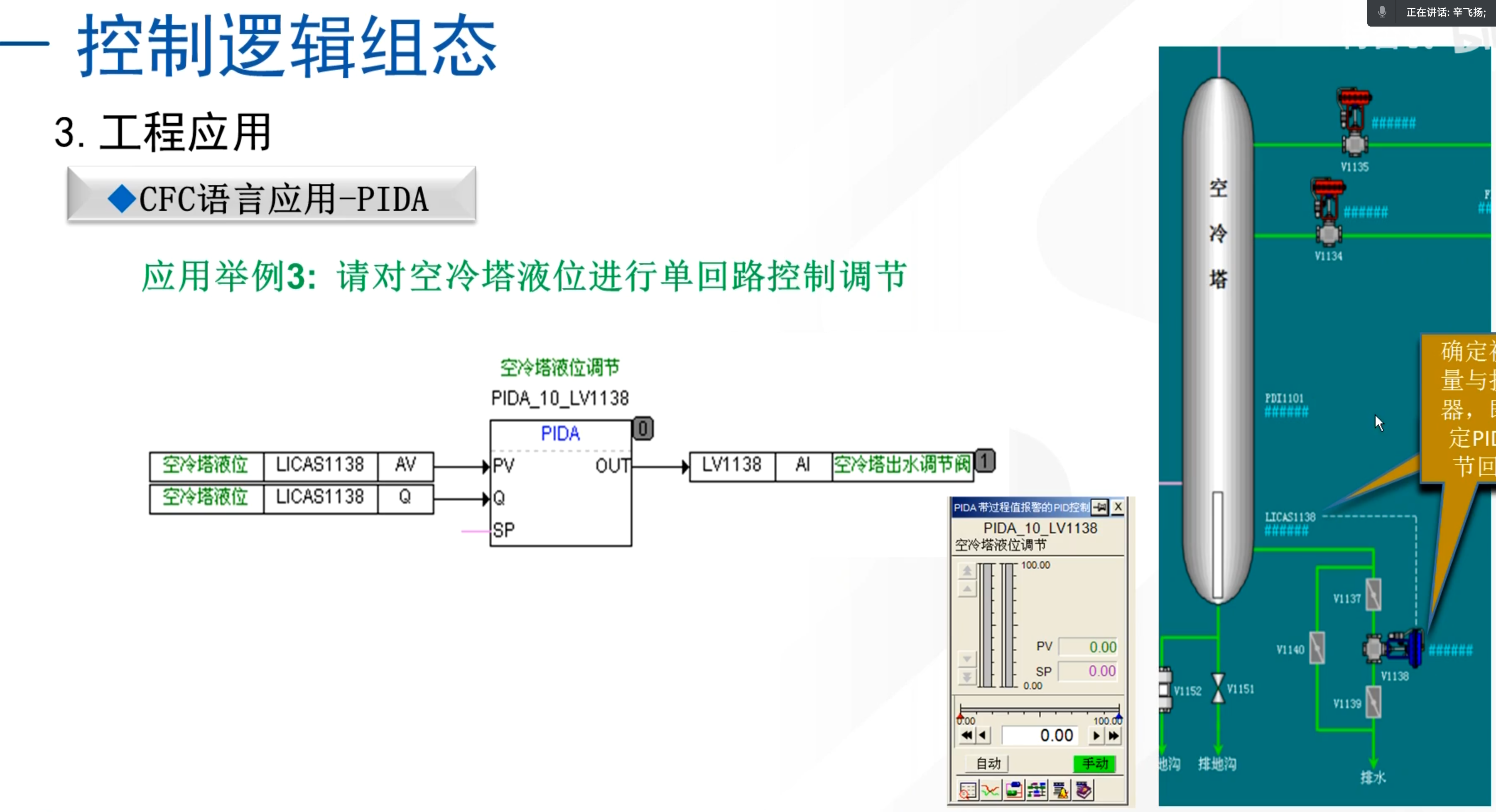

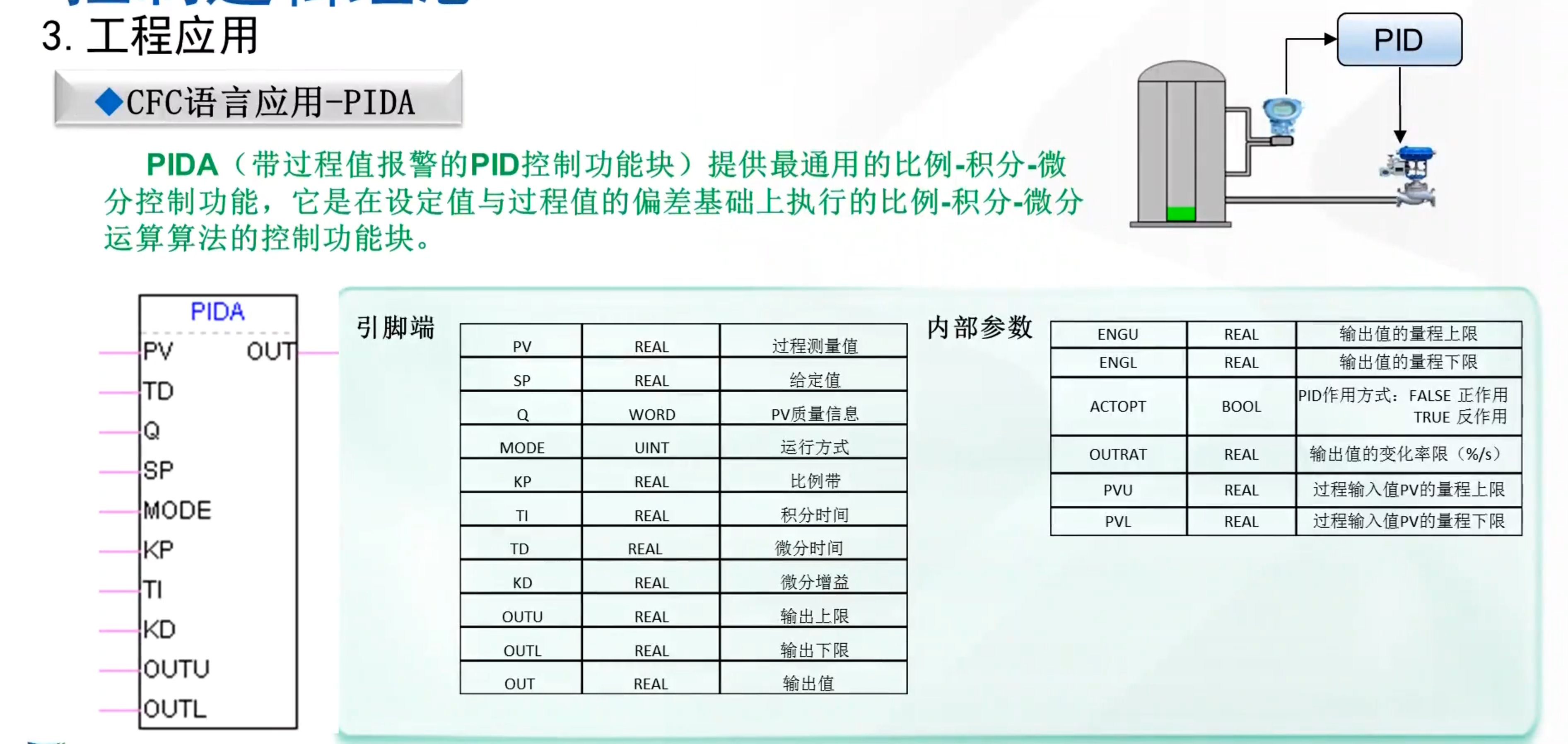

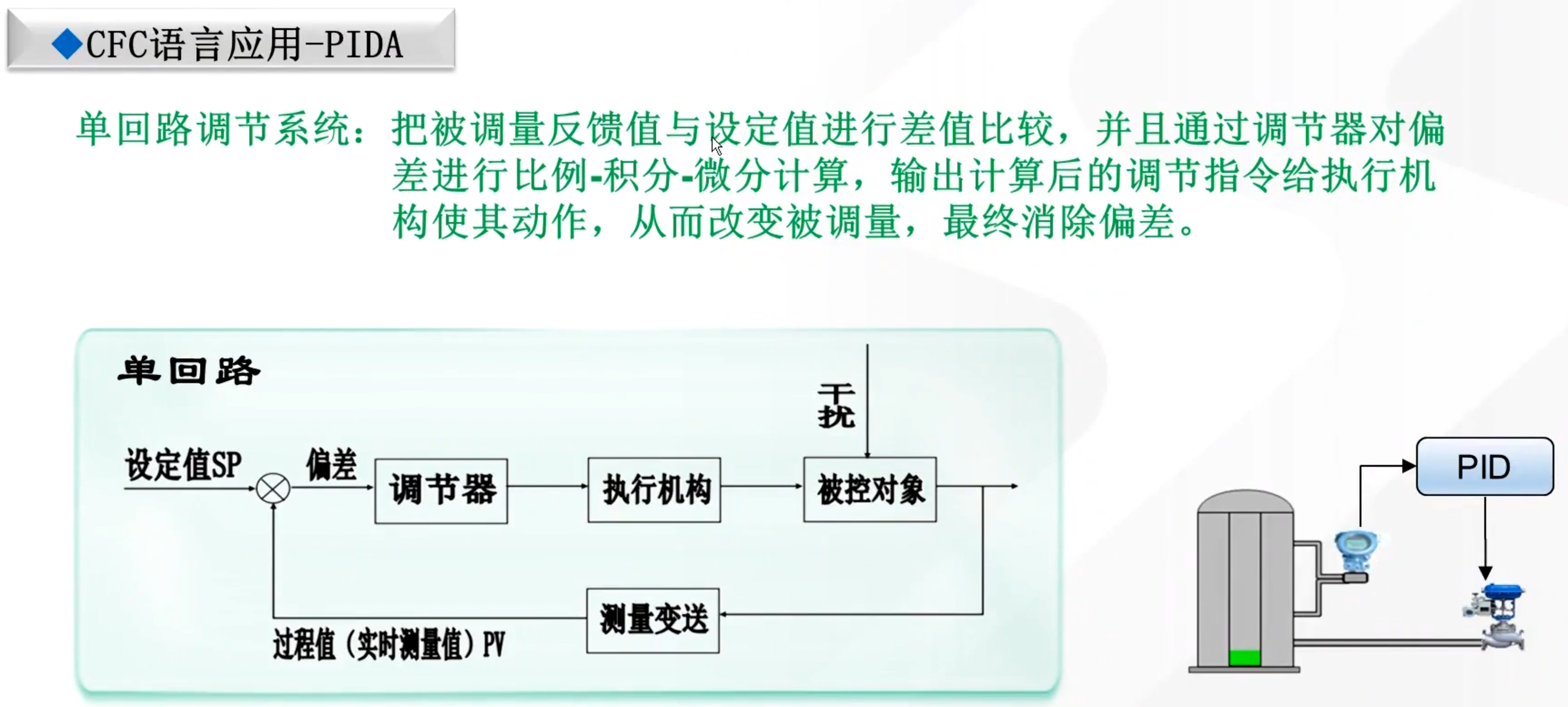

PIDA功能块

https://cdn.jsdelivr.net/gh/xinqinew/pic@main/img/image-20220828200117775.png

https://cdn.jsdelivr.net/gh/xinqinew/pic@main/img/image-20220828200602408.png

https://cdn.jsdelivr.net/gh/xinqinew/pic@main/img/image-20220828214809282.png

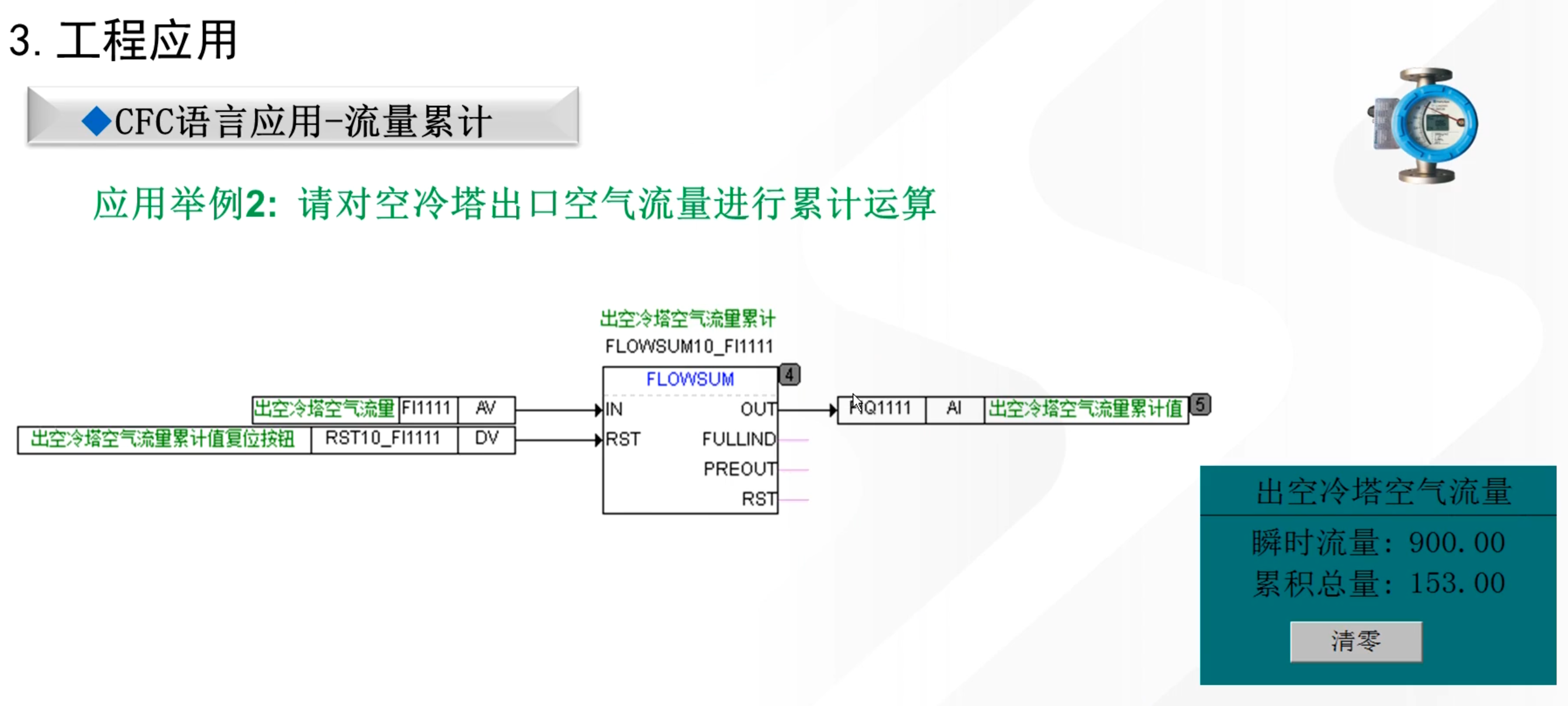

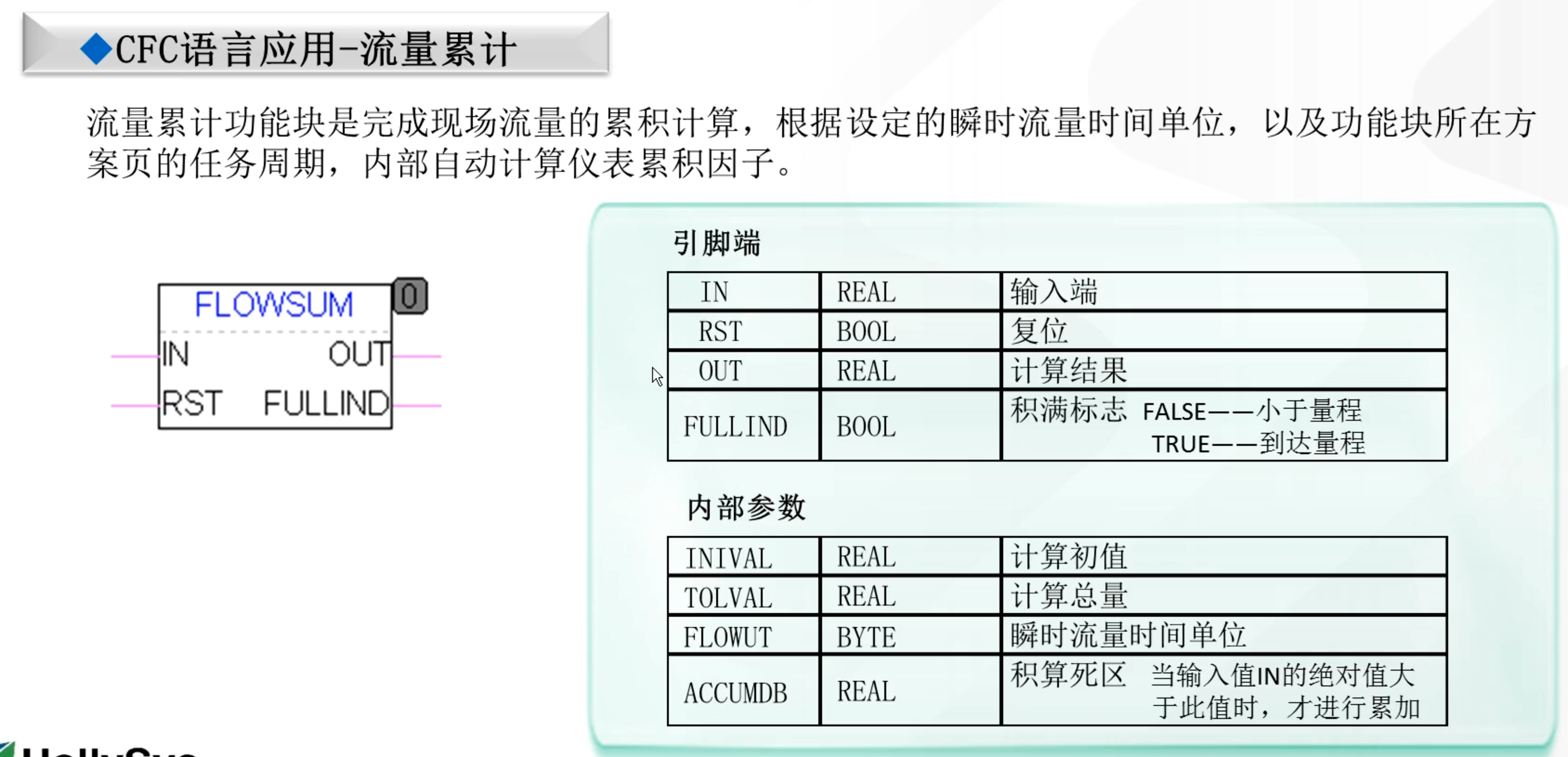

流量累计 flowsum功能块

https://cdn.jsdelivr.net/gh/xinqinew/pic@main/img/image-20220829201013315.png

https://cdn.jsdelivr.net/gh/xinqinew/pic@main/img/image-20220829201701508.png

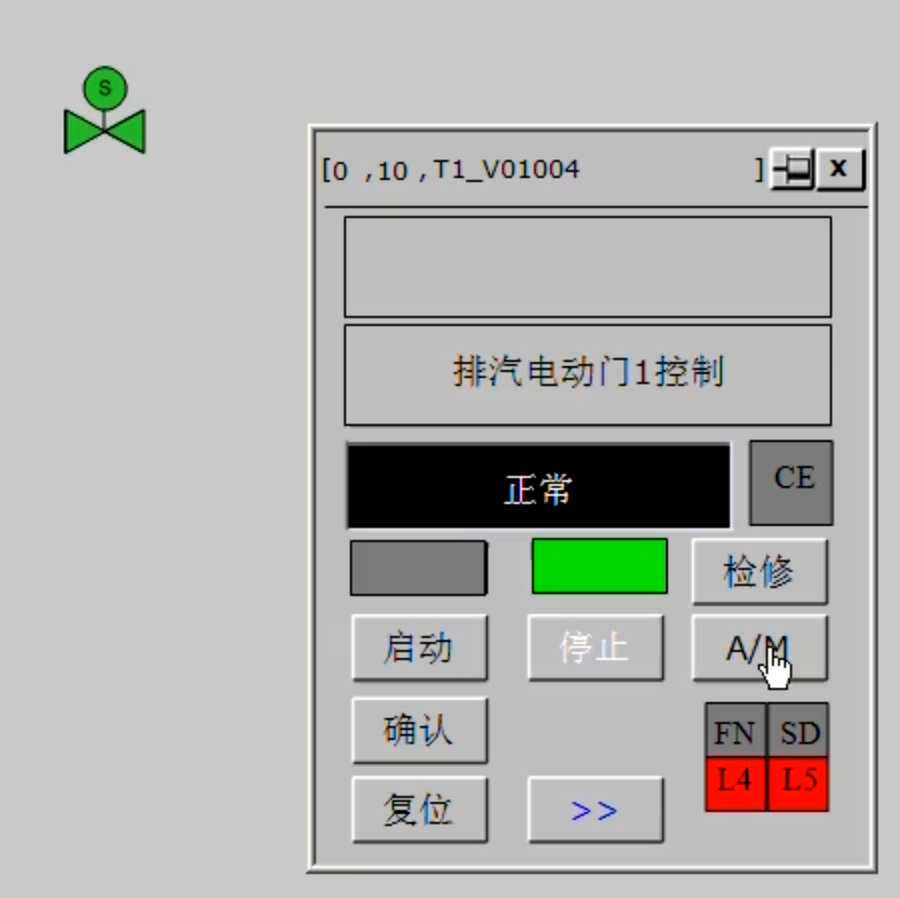

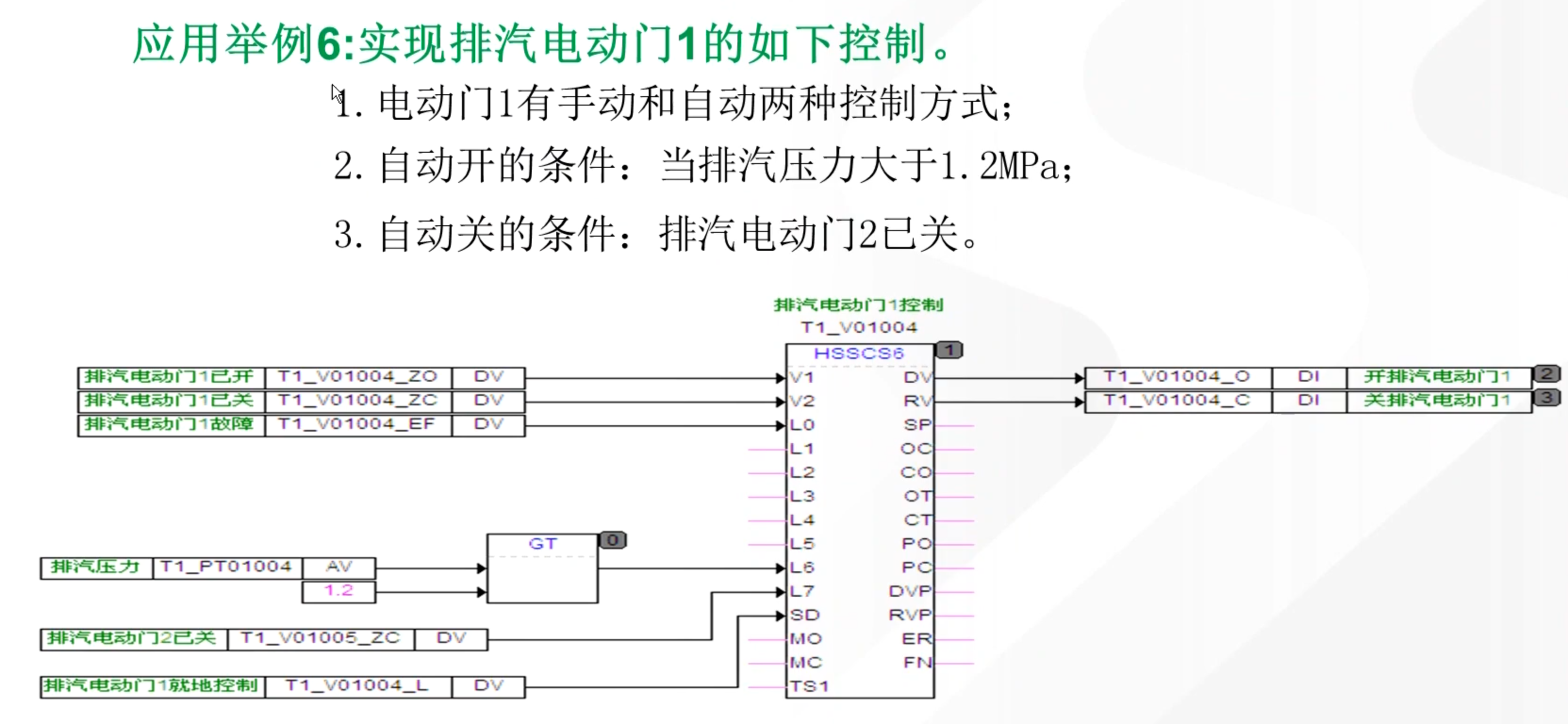

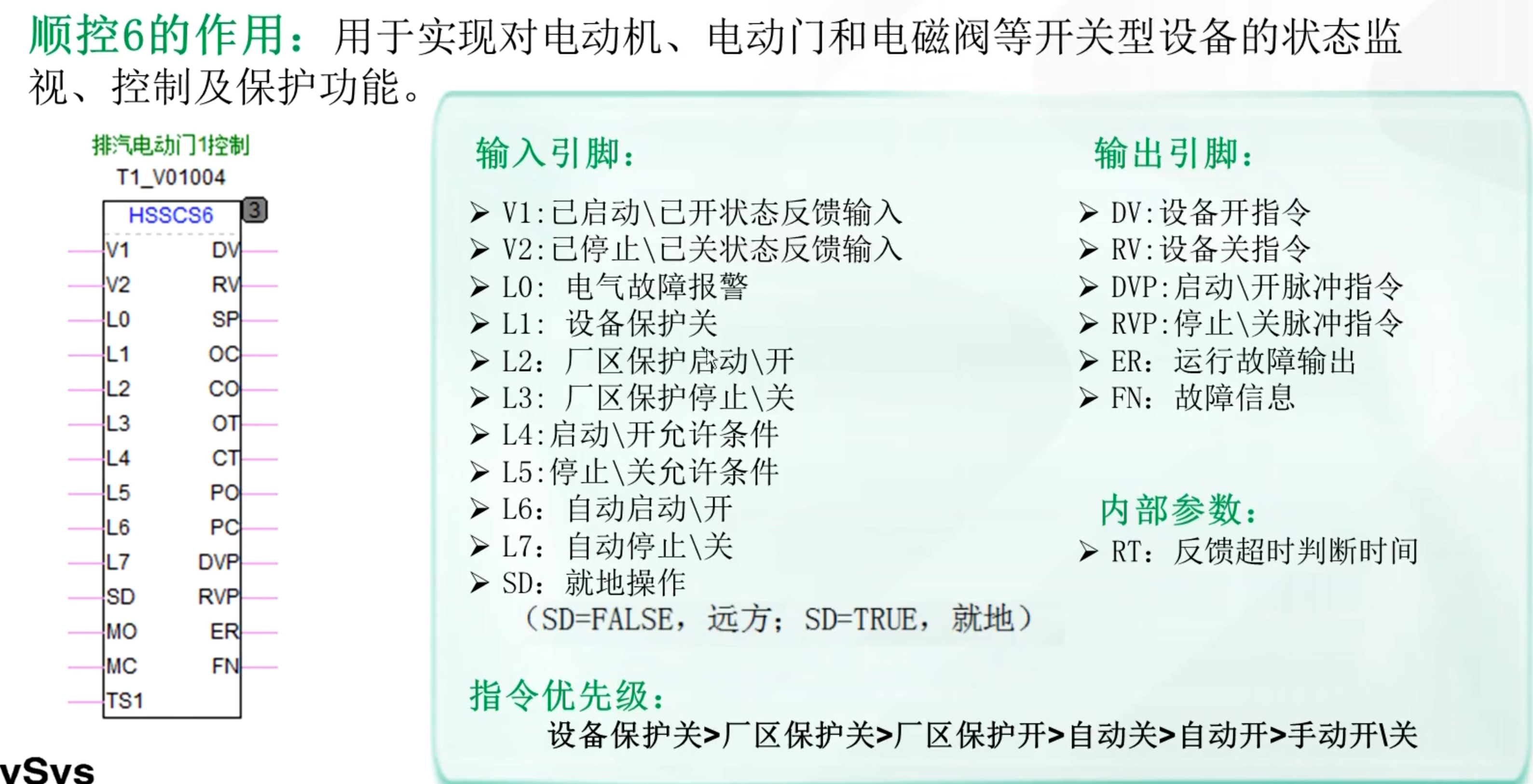

顺控6 hsscs6功能块

https://cdn.jsdelivr.net/gh/xinqinew/pic@main/img/image-20220831212738870.png

https://cdn.jsdelivr.net/gh/xinqinew/pic@main/img/image-20220831213316017.png

https://cdn.jsdelivr.net/gh/xinqinew/pic@main/img/image-20220831214816915.png

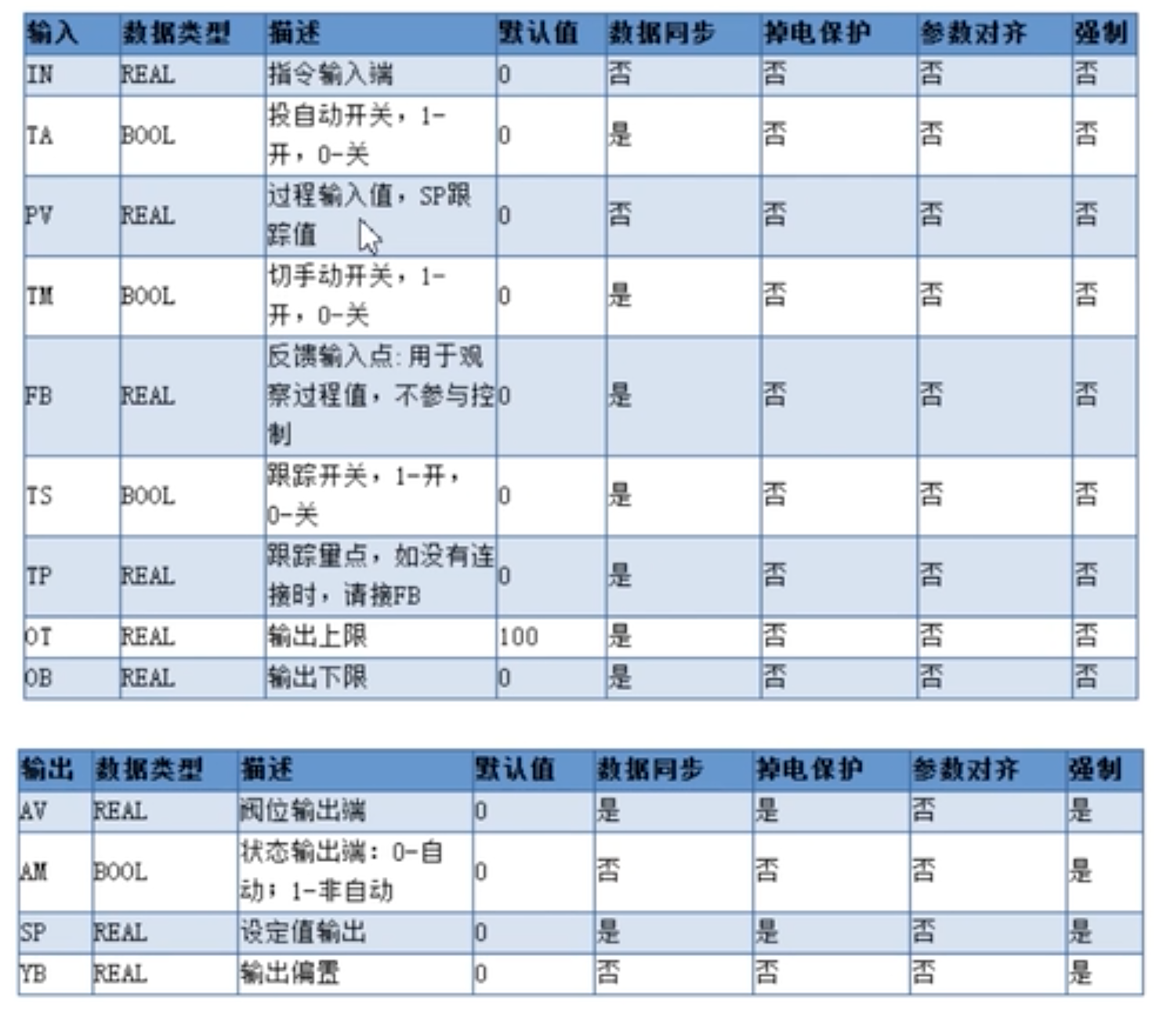

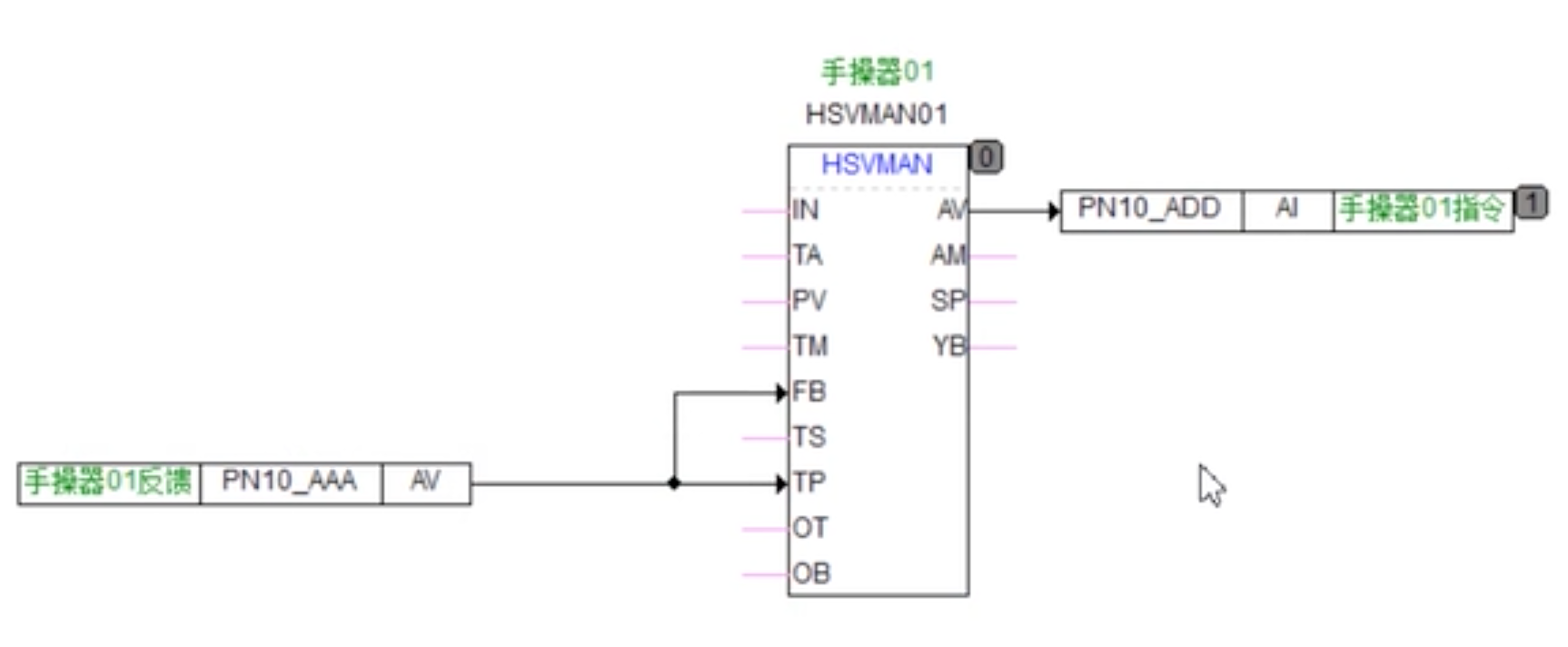

手操器HSVMAN

https://cdn.jsdelivr.net/gh/xinqinew/pic@main/img/image-20221013180629575.png

https://cdn.jsdelivr.net/gh/xinqinew/pic@main/img/image-20221013180543830.png

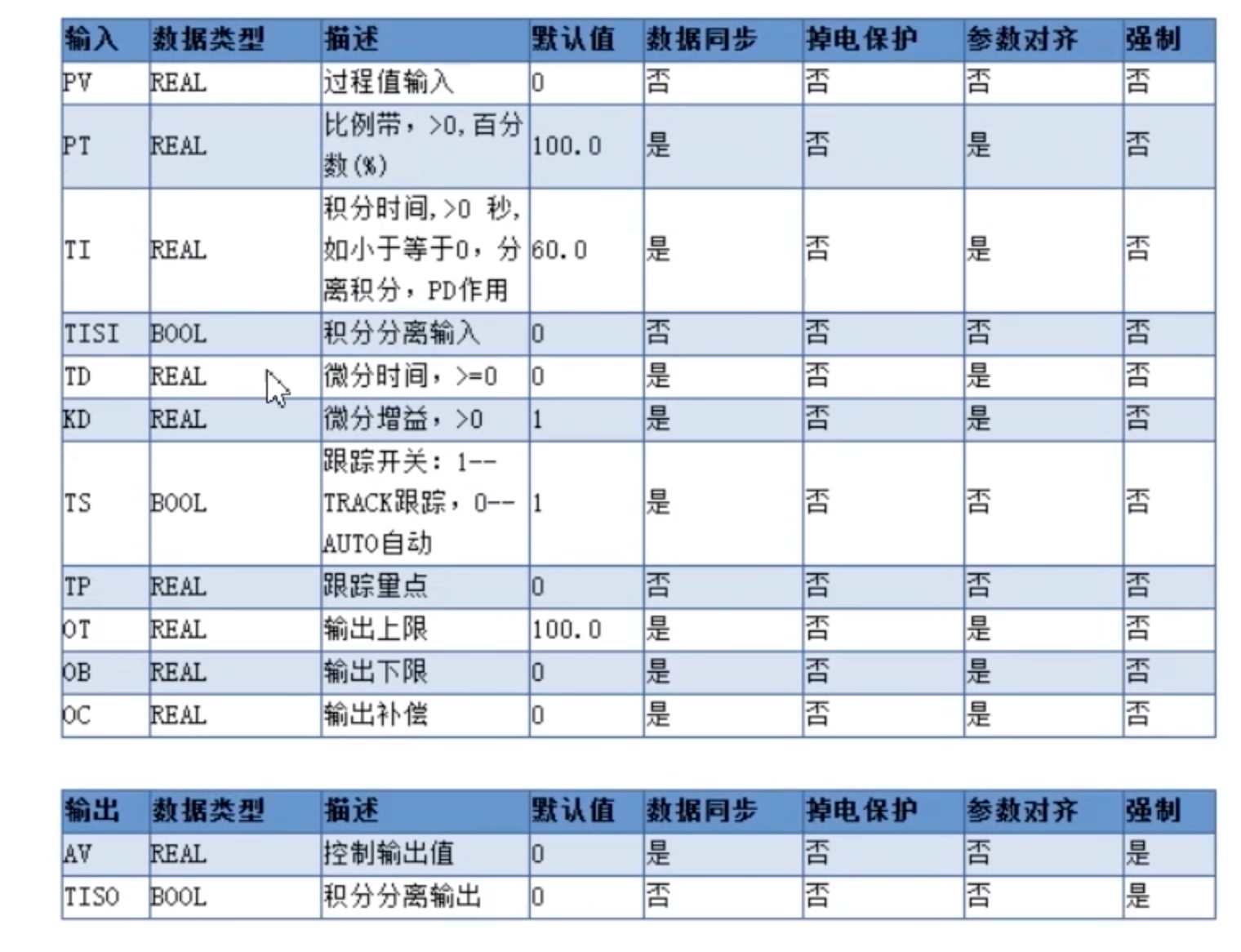

HSVPID功能块

引脚：

https://cdn.jsdelivr.net/gh/xinqinew/pic@main/img/image-20221016181831329.png
